GTKPRO2

GTKPRO2

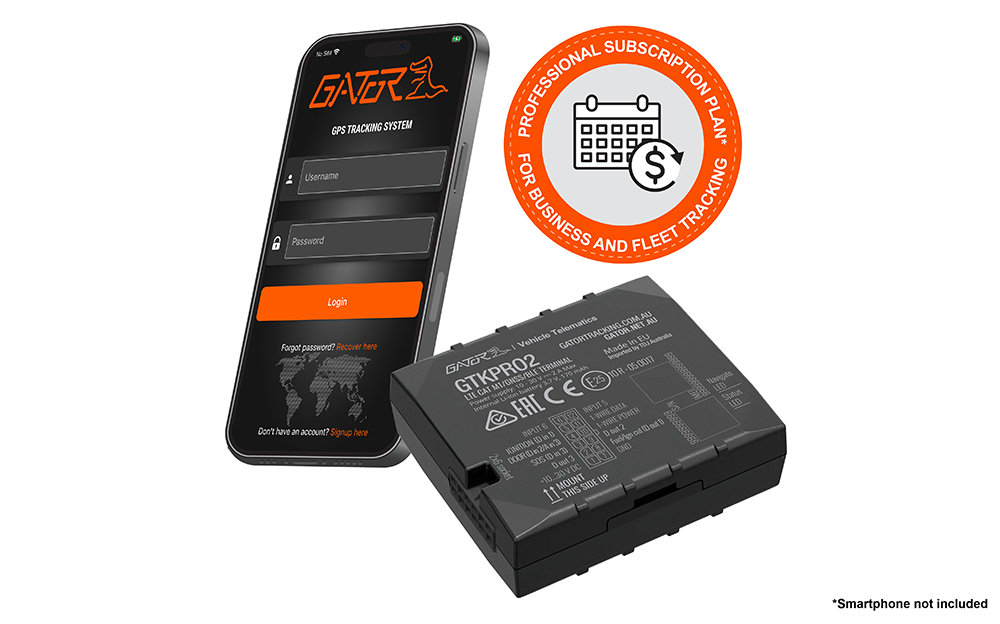

The GTKPRO2 is a 4G LTE CAT-M1 Vehicle GPS Tracking Device that comes supplied with a SIM Card operating on the Telstra 4G M2M Network and includes 30 Days Tracking Credit. After 30 Days, Subscription is required to use this device. Suitable for individuals through to large fleet operators, the module is 12/24 volt compatible and can be installed in virtually any vehicle. Offering reliable, accurate & secure tracking, monitor your vehicle in real-time and receive instant alerts via the Gator Tracking Smartphone App or Web Portal





PORTAL FEATURES




VEHICLE TRACKING




TRACKING HISTORY




TRACKING INCLUDED




AUSTRALIAN BASED SERVER




SMARTPHONE APP




WEBSITE PORTAL




GEO-FENCES




ROUTES




PLACES




FLEET GROUPING




SUB ACCOUNTS




ADVANCED REPORTING







*GTKPRO2 requires subscription to operate and to enable all features, CLICK HERE for more details.








TRACKER FEATURES




NATIONWIDE COVERAGE




M2M SIM CARD INCLUDED




SMART TRACKING




HIGH ACCURACY LOCATION




OFFLINE MEMORY




BEHAVIOUR MONITORING




CRASH DETECTION




TOW AWAY DETECTION




DOOR STATUS DETECTION




IGNITION DISABLE




2 AUX RELAY OUTPUTS




12-24V COMPATIBLE




BATTERY BACK UP





*GTKPRO2 requires subscription to operate and to enable all features, CLICK HERE for more details.











4G LTE CAT-M1 NATIONWIDE COVERAGE

The GTKPRO2 Vehicle GPS Tracking System is a 4G compatible tracking system. It is a LTE CAT-M1 device and operates exclusively on the Telstra Network, providing extensive coverage throughout Australia.










M2M SIM CARD INCLUDED

This GPS tracking system comes supplied with an M2M SIM Card operating on the Telstra 4G LTE Network. Once installed you will receive 30 days free tracking credit and access to the Gator Tracking Portal. The GTKPRO2 Tracking Module and access to the Gator Tracking Portal (via Smartphone APP and Web) require a valid (paid) subscription to the Gator Tracking Service. Ongoing fees and charges apply, CLICK HERE for more details. 3rd Party SIM Cards are not supported on this device.










SMART TRACKING

While your car is on, the system is recording new data, whenever it changes velocity it records new ones, that means if you are travelling steadily, it will reduce it's rate of recording, but when changing direction or speed it will add more and more. Each time the data is recorded, the position of the vehicle on the map will also update.










HIGH ACCURACY

The powerful GPS Chipset inside the GTKPRO2 Tracking module is extremely accurate. With full satellite signal, the location accuracy is within 3M of the tracking device.










OFFLINE MEMORY

As long as the tracker is still receiving GPS signal, it will retain the location data in its memory when data connection is lost which may occur if you drive outside of a 4G area. Once the data connection is re-established, the tracker will upload the journey to the tracking portal as soon as it can, showing where the vehicle travelled during that time. (Please note, full GPS signal is required for accurate data logging during this time).










DRIVER BEHAVIOUR MONITORING

The GTKPRO2 Vehicle GPS Tracker is the perfect solution for Fleet Operators. The GPS tracker has a built in sensor that can detect excessive; braking, acceleration and cornering. When one of these incidents are detected, an event will be recorded.










CRASH DETECTION

The three dimensional accelerometer measures vehicle altitude and g-forces and alerts the server if a major crash is detected.










TOW AWAY DETECTION

The GTKPRO2 can generate an event and send an alert when the vehicle is being towed or lifted while the vehicle ignition is off. So if someone attempts to steal your vehicle, you will receive an alert.










DOOR STATUS DETECTION

Detects a door opening event. This parameter can be combined with other parameters to create meaningful alerts such as a combination of a door open and the engine still running.










IGNITION DISABLE

During installation an immobilisation circuit can be connected to the ignition in the vehicle. This enables remote ignition cut off when the vehicle is not in motion (i.e. parked) via the tracking portal.










2 AUX RELAY OUTPUTS

2 additional relays can be configured to activate selected electrical systems within the vehicle. For example the horn or head lights could be turned on remotely.










12-24V COMPATIBLE

Cars, trucks, vans, utes, motorcycles and more, this GPS tracking system is 9-30V compatible, making it the perfect solution for virtually any vehicle. Installation is simple too, for basic tracking installation only 3 wires need to be connected to the vehicle; constant power, accessory power and earth.










BATTERY BACK UP

The GTKPRO2 Vehicle Tracking System has a built-in 170mAh rechargeable lithium-ion battery so the vehicle can still be monitored for a short period of time even if the vehicles battery has been disconnected or goes flat. The battery needs to be connected during installation (see manual for details), and simply charges while the vehicle is driving.







TECHNICAL

GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS (CONFIGURED FOR GPS AND GLONASS ONLY)
RECEIVER TRACKING: UP TO 33 SATELLITES
TRACKING SENSITIVITY -165 dBM
ACCURACY < 3M (ACCURACY DEPENDS ON PDOP METRICS (SATELLITE QTY AND SPREAD)
HOT START < 1 s
WARM START < 25 s
COLD START < 35 s

CELLULAR

TECHNOLOGY LTE CAT M1/NB-IoT/GSM (CONFIGURED FOR 4G CATM1, TELSTRA NETWORK ONLY)
4G BANDS LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28
LTE TDD: B39 (Configured to focus only on Telstra 4G CATM1 bands only)
DATA TRANSFER LTE: MAX. 375KBPS (DL)/MAX. 375KBPS (UL)
GPRS MAX. 85.6KBPS (DL)/MAX. 85.6KBPS (UL)
DATA SUPPORT SMS (TEXT/DATA) SMS LIMITED TO ADMINISTRATION ONLY
SIM SUPPLIED M2M SIM CARD. REQUIRES SUBSCRIPTION TO WORK BEYOND 30 DAYS FROM ACTIVATION
INPUT VOLTAGE RANGE 10V - 35V DC (10 - 30 V DC WITH OVERVOLTAGE PROTECTION)
BACK-UP BATTERY 170 MAH Li-ION BATTERY 3.7 V (0.63 WH)

BLUETOOTH / CAN: 4.0 + LE

SUPPORTED BT PERIPHERALS TEMPERATURE AND HUMIDITY SENSORS, UNIVERSAL BLE SENSORS SUPPORT (REQUIRES EXTRA CONFIGURATION AND SERVER ADMIN APPROVAL)
SUPPORTED CAN PERIPHERAL PERIPHERAL DATA TO SERVER IS NOT SUPPORTED UNDER ALL SUBSCRIPTION PLANS. CAN DATA PLANS ON REQUEST. (REQUIRES EXTRA CONFIGURATION AND SERVER ADMIN APPROVAL)

INTERFACE:

3 SENSOR INPUTS (DIGITAL HI/LO) D1 - IGNITION DETECTION (High), D2 DOOR OPEN SENSING (GND), D3 SOS HELP BUTTON (HIGH)
DIGITAL OUTPUTS 3 (D1 RESERVED FOR IGNITION DISABLE)
CAN ADAPTER INPUTS 1
1-WIRE DATA EXPANSION PORTS 1
GNSS ANTENNA INTERNAL HIGH GAIN
CELLULAR ANTENNA INTERNAL HIGH GAIN
USB 2.0 MICRO-USB (USED FOR CONFIG/DEBUG ONLY)
LED INDICATION 2 STATUS LED LIGHTS
SIM MICRO SIM
MEMORY 128MB INTERNAL FLASH MEMORY (CAPABLE OF STORING TRACKING DATA WHEN DATA LINK IS SEVERED TEMPORARILY FROM SERVER)

PHYSICAL

DIMENSIONS 65 x 56.6 x 20.6 MM (L x W x H)
WEIGHT 55 G

OPERATING ENVIRONMENT

OPERATING TEMPERATURE -40°C to +85°C (WITHOUT BATTERY)
STORAGE TEMPERATURE -40°C to +85°C (WITHOUT BATTERY)
OPERATING HUMIDITY 5% TO 95% NON-CONDENSING
INGRESS PROTECTION RATING IP41
BATTERY CHARGE TEMPERATURE 0°C TO +45°C
BATTERY DISCHARGE TEMPERATURE -20°C TO +60°C
BATTERY STORAGE TEMPERATURE -20°C TO +45°C (1 MONTH) / -20°C TO +35°C (6 MONTHS)



INCLUSIONS


TRACKING MODULE




WIRING HARNESS




IMMOBILISATION RELAY




SIM CARD




PRODUCT MANUAL



GTKPRO2 FEATURE VIDEO

GTKPRO2 APP VIDEO

INTRODUCTION TO TRACKING WEB PORTAL







UNLIMITED VEHICLE TRACKING

From a single log in, you can track as many GTKPRO2 Tracking Devices as you want. We have no limitations so whether you are an individual tracking your personal vehicle or a large fleet operator tracking vehicles all over Australia, you can easily monitor them all in one place. Feature is available once subscribed, CLICK HERE for more details about subscription.






14 MONTHS TRACKING HISTORY

We will store up to 14 months of tracking history for you to access at any time. This will give you plenty of time at the end of the financial year to generate any reports required for documenting where your vehicle has travelled throughout the year. Feature is available once subscribed, CLICK HERE for more details about subscription.






30 DAYS FREE TRACKING

Your tracker will work instantly upon installation with the included SIM Card without any sign up for up to 30 days. After the 30 days, subscription is required to continue using the Gator Tracking Service and GTKPRO2 Tracking Device. Ongoing fees and charges apply, CLICK HERE for more details. M2M SIM card included, operating on the Telstra 4G M2M CAT-M1 network.






AUSTRALIAN BASED SERVER

Many tracking companies have servers based overseas in countries with less stringent data protection laws. Often these servers are unreliable and it can be difficult to obtain after sales support as the service provider here in Australia has little to no control over the server. The Gator GPS Tracking Portal Server is located right here in Australia and the software is managed from the Gator Head Office in Melbourne, offering a safe, secure and reliable tracking solution with local after sales support.






SMARTPHONE APP

The Free Gator Tracking Smartphone App can be used on iOS and Android Smartphones. It allows you to track the vehicle, turn triggers on/off, receive alerts, create basic geo-fences and navigate to the vehicle. The App is easy to use and allows you to track your vehicle from anywhere around the world 24/7.








WEBSITE PORTAL

The Gator GPS Tracking Portal online web-based software can be accessed 24/7 from any location across the globe and from any device that has internet access including desktops, laptops, smartphones and tablets. With two selectable interfaces, simple and advanced, the Gator GPS Tracking Portal is suitable for every user.






GEO-FENCES

Virtual boundaries on the map can be set up to identify important locations, such as a job site, home or office. Every time the GPS tracker enters or exit these locations an alert will be sent. Geo-Fence Zones are very simple to set up and can be any shape or size. The Geo-Fence Zone alerts can be customised to activate on specific days and during specific times.






ROUTES

Want to know if a vehicle deviates from the route? Routes are ideal for vehicles that travel on the same roads on a regular basis. Set predetermined routes for the vehicle to travel on, when the vehicle deviates from the route the GPS tracker will send a notification. Routes can be as short or as long as required and are very simple to set up. The Route alerts can be customised to activate on specific days and during specific times.






PLACES

Pinpoint exact places / locations a vehicle should be. As soon as the GPS tracker arrives or leaves this location a notification will be sent. As with Routes and Geo-Fence Zones, Places are very simple to set up in the Gator GPS Tracking Web Portal and there is no limit to how many locations can be added. The Places alerts can be customised to activate on specific days and during specific times.






FLEET GROUPING

The perfect tool for large fleet operators, create multiple vehicle groups in the portal allowing you to easily divide your fleet and view individual groups on the map.






SUB ACCOUNTS

Create, customise & manage sub accounts, providing separate logins with customised permissions for colleagues or family members.






ADVANCED REPORTING

Generate reports to cover all aspects of vehicle usage including; journey details, engine status, stationary times, geo-fence entry/exit, route deviations, driver behaviour and more.




Congratulations on your purchase!
Your new tracking device should already be configured and ready to connect to our server, you only need to install the SIM.

Information

The GTKPRO2 Is already configured to connect to the SIM provided and to our tracking server. No configuration is required, simply insert the SIM card and install into the vehicle.

By the time you've finished installing it (or 20 minutes), the SIM service should have provisioned and activated, then the device is read to be added to your account.

Enjoy!

Next Steps

Now that your device has been setup, you can add it to the gator.net.au server.

Add Your Device
